Design&Consulting
OUR SERVICE
After many years of experience as a plant EPC contractor, we launched a design and consulting business in 2016. Design firms and technical support consultants are very few in Thailand, operated almost exclusively by individuals or small groups. Many of these services face capacity issues and difficulty meeting deadlines, making them impractical for actual application. We are managed by Japanese engineers, placing emphasis on high quality and, above all, on punctuality. Our goal is to provide design outsourcing services in situations where a design staff member suddenly leaves the company or the volume of work is too large to complete in a short period of time. Depending on the nature of the work, there may also be cases where it is desirable for us to be based at the client’s workplace for a period of time, and this is also possible.

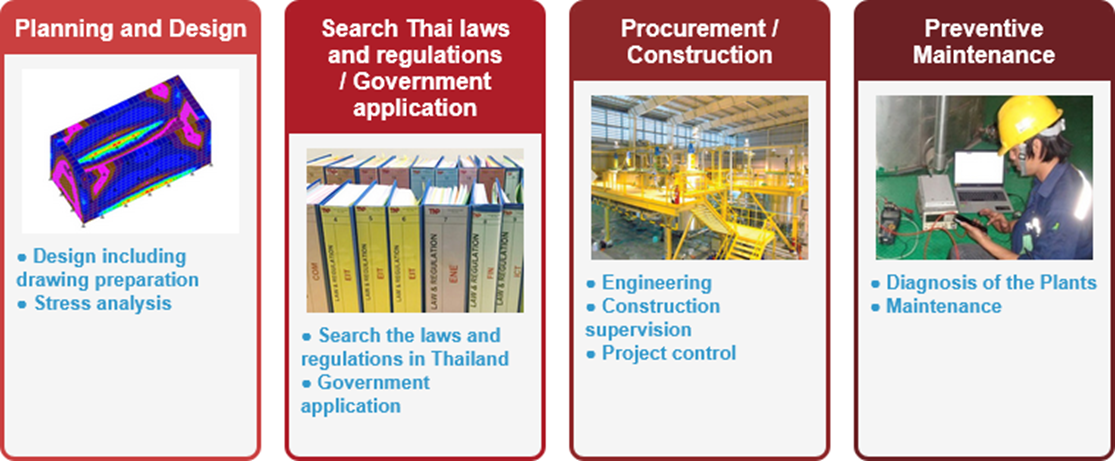

Our consulting services are primarily divided into the following four areas, each of which is implemented naturally based on the needs of each client.
(1) Project planning and design
(2) Investigation of Thai laws, and coordination and application to the government
(3) Project control and construction management on behalf of the clients
(4) Preventive maintenance and diagnosis of facilities
EQUIPMENT DESIGN SERVICES
Preparation of calculation sheets and drawings for pressure vessel, tank, silo, and heat exchanges etc. Applicable codes and standards: ASME Section VIII Div.1, and Div.2 as necessary, API 650.
STRUCTURAL ANALYSIS
Structural analysis is performed as necessary in the following cases:
- More economical design is performed by the accurate analysis in detail.
- More clear local stress in nozzles, lifting lugs, bracket mounting parts, etc. are required.
- Make clear thermal stress caused by the heat is required.
3D models will be made upon request using AutoCAD Plant 3D.
Fatigue Analysis will be conducted in accordance with ASME Section VIII Division 2.
CIVIL AND BUILDING DESIGN
Plant facilities such as steel structure and equipment foundations are major part, however general building or civil structures will be designed.
Applicable codes and standards: Thai laws and regulations, ANSI/AISC 360, ACI 318

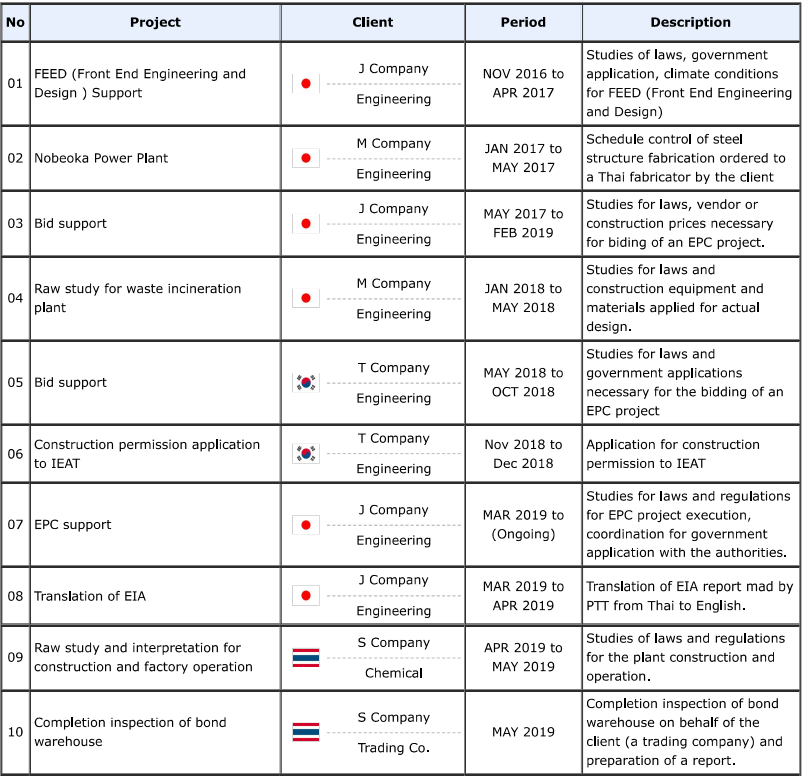

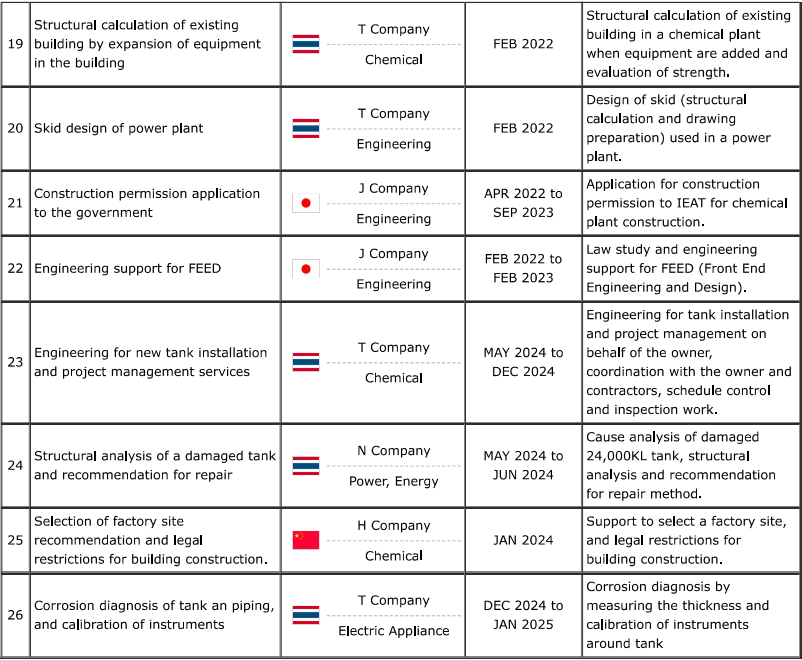

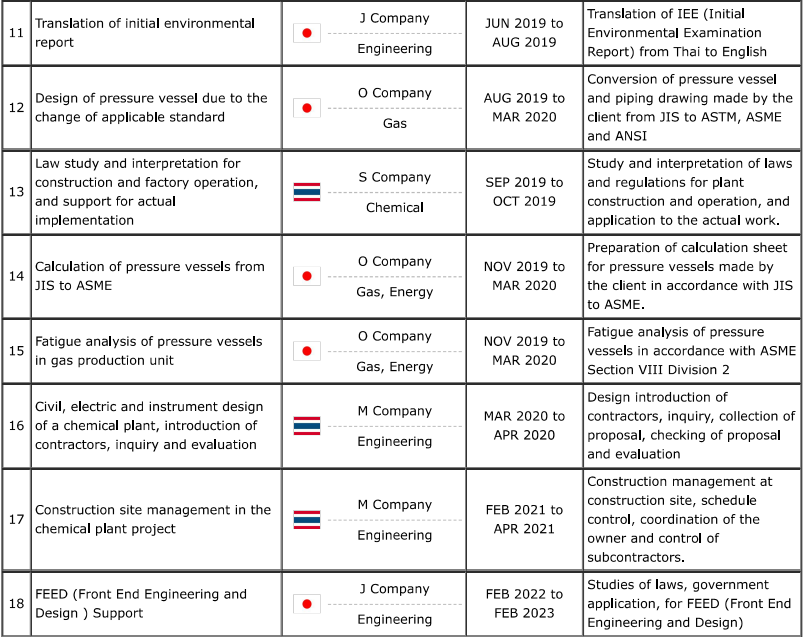

Experience of Consultant Services
